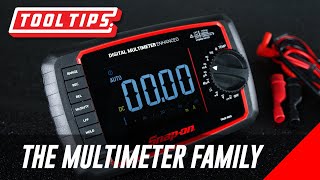

Basic Multimeter TRMS-Daylight EEDM504F by Snap-on, USA
Features
• Measures ohms, AC/DC volts, true-RMS AC, AC/DC amps, Hz frequency and more to cover many automotive electrical needs
• Large, white backlit display for easy reading, plus quick identification of symbols in low light conditions and with the backlight off—the best Snap-on® meter in bright daylight
• Convenient test lead storage wrap with retention strap
• Built-in tilt stand and optional strap hanger (EEDMMAGSTRAP) for easy viewing
• Hz/Duty (Duty Cycle): Measure in percent the ON time of sensors or other devices
• REC (record mode): Store minimum and maximum readings over a measurement period
• LCD display: 4,000 count with 41-segment bar graph
• Seven-year limited warranty
• TRUE-RMS: True-RMS measurement on ACV and ACA for accurate readings on all types of of AC waveforms
• High-Resolution DC mV Range: Additional 40 mV range with 0.01 mV resolution for improved accuracy when performing low-voltage measurements
• ACV (AC Volts): Measure the voltage of ABS wheel sensors
• DCV (DC Volts): Measure the voltage of circuits and sensors
• Separate Fuse/Battery Compartment: Easily removed for battery/fuse replacement
• REL (Relative Mode): Factor out lead resistance for improved low ohm measurements or compare readings to a known standard; can also be used for differential measurements
• Hold: Lock the reading on the display for hard to read locations for future reference
• Ohms/Resistance: Measure the resistance of spark plug wires, coils, sensors, and continuity of wiring
• AC/DC Current Functions (Amps): Measure the parasitic draw from the battery with ignition off
• Hz (Frequency): Measure the frequency of sensors and signals
• Separate Fuse/Battery Compartment: Easily removed for battery/fuse replacement
• Technical Support: 888-382-6522
Internal Fuse Test: • Before you call the 800 number • Set unit to diode test with FUNCTION button • Plug the black test lead into red “VΩ” input • Touch the prod end of black lead red “A” input • If the meter reads “OL” fuse is blown, replace • If there is a reading other than “OL” fuse is OK
Specifications
Capacitance Yes
RPM EEDMRPMG (opt.)
Low Pass Filter (LPF) No
Case or Zipper Pouch EEDM5F-POUCH
Adjustable Trigger Level No
Temperature EEDM506C (opt.)
AC Volts 750
Basic DC Accuracy, % —
Micro Amps Yes
Country of Origin KOR
Dimensions, inches 7-3/4 x 3-3/4 x 1-1/2
Noise Reduction Circuit No
mS Pulse Width No
CAT Rating CATII 750 V AC, CATII 1,000 V DC, CATIII 600 V AC/DC
Backlight Yes
Auto Shut-off After Approx. 15 minutes (can be disabled)
Test Leads EEDMLEADSET
Certificate of Calibration Model EEDM504FCRT
DC Amps 10
UL® Listed cULus 61010-1
Glitch Capture No
Insulation Test No
Analog Bar Graph Yes
Resistance, ohms 40M
Data Hold Yes
Auto Range Yes
Duty/Dwell Duty Only
True RMS (Root Mean Square) Yes
AC Amps 10
Display Count 4,000 Color
Soft Pouch EEDM5F-POUCH
Fuses EEDMFUSE-1, EEDMFUSE-2
Blown Fuse Identifier Yes
Comp. Output (USB) No
Min/Max Yes
DC Volts 1,000
Easy Open Battery and Fuse Door EEDM5F-DOOR
Color Screen No
Display Protector EEDM5F-PROTECT (opt.)
Frequency Yes
