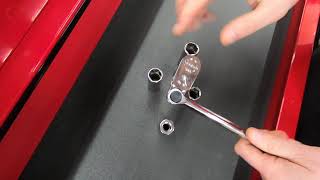

Snap-on Multi-Position Head Ratchet
- Ratchet head indexes at 16 positions across 240° for better access to fasteners around blind corners
- Three-in-one ratchet that functions as an offset fixed-head ratchet, conventional straight ratchet and as a 360° speeder ratchet
- Push/pull speeder function for fast bolt tightening or loosening in constrained work areas
- 360° crank rotation speeder function for fast bolt removal
- Dual 80® Technology ratchet design features 80-tooth gear, with seven teeth in contact with gear to provide strength and durability
- Sealed head keeps lubricants in and contaminants out for longer life
- Soft grip handle provides comfort and control, and resists most shop chemicals
- Chrome finish for easy cleanup
- Rugged reverse lever increases tool longevity
Joint Repair Kit —
Dimension C, Length, inches 12-1/4
Repair Kit RKRF80
Locking Mechanism Repair Kit —
Swing Arc, degrees 4.5
Replacement Grip FH80-12
Country Of Origin USA
Gear Teeth 80
ASME®/ANSI® B107.10
Description (Chart) Multi-Position Head Ratchet
Finish Chrome
Dimension B, Head Width, inches 1-1/4
Square Drive, inches 3/8
Dimension A, Head Depth, inches 9/16
Replacement Cover Plate F80-2
• Engine: Start bolts and Alternator bolts
• Exhaust System: Three Bolt Exhaust Flanges
• Drivetrain: Transfer Case bolts; front and rear differential
• Suspension System: Brake Caliper bolts; steering knuckle
